3 Axis Dispensing Robot with 600*600mm Working Range ±0.02mm Repeat Accuracy and 500mm/sec Max Speed for LED Lighting

Name: 3 Axis Dispensing Robot with 600*600mm Working Range ±0.02mm Repeat Accuracy and 500mm/sec Max Speed for LED Lighting
Brand: Zhongshan GDS Automation Equipment Co., Ltd.
SKU: HTD-600
Availability: InStock

Markenbezeichnung:	GDS
Modellnummer:	HTD-600
MOQ:	1 Stück
Preis:	CONTACT US
Lieferzeit:	10 Tage
Zahlungsbedingungen:	T/T

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

China

Zertifizierung:

Name:

3 Achsen-Ausgabe-Roboter

Funktion:

Silikon zur Abgabe

Anwendung:

Wasserdichte Lampe

Garantie:

1 Jahr

Kundendienst:

Online oder vor Ort

EXW-Bericht:

Testvideo verfügbar

Verpackung Informationen:

Sperrholzkiste

Versorgungsmaterial-Fähigkeit:

30pcs/Mon

Produkt-Beschreibung

3-Axis Glue Dispensing Robot LED Lighting Manufacturing Equipment for Waterproof Lamp

Machine Description

Transform your manufacturing process with our cutting-edge 3-Axis Glue Dispensing Robot, designed exclusively for high-precision LED lighting assembly. Whether you produce outdoor luminaires, industrial-grade waterproof lamps, or specialty LED fixtures, our advanced system ensures flawless sealing, durability, and compliance with IP68/IP67 standards.

Why Choose Our Solution?
Ultra-Precision Dispensing: Achieve consistent glue/sealant application for complex LED housing designs, eliminating leaks and ensuring 100% waterproof performance.
Speed & Efficiency: Reduce cycle times by up to 40% with automated, programmable workflows—perfect for high-volume production.
Adaptive Flexibility: Handle diverse LED lamp shapes and sizes effortlessly, from compact bulbs to large-scale fixtures.
Material Savings: Minimize waste with intelligent path-planning technology, cutting adhesive costs by 25%+.

Machine Features

equipped industrial PLC controller, for different glue with different settings ensure the best performance;
replace manual silicone application
floor-stand design with wide working range(600*600MM), fit for small size work-piece;
glue flow control is stable without leakage and drawing.
get better water-proof and bonding performance
equipped with small hand programming controller
make the gluing process easy to accelerate
can fit for different brand silicone in 300ml package or 2600ml package

3 Axis Dispensing Robot with 600*600mm Working Range ±0.02mm Repeat Accuracy and 500mm/sec Max Speed for LED Lighting 0

Technical Parameters

model	HTD-600
MCU	3 axis movement controller
programming	teaching programming
drive mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	600600100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	Program Memory Capacity
Dimension(LWH)	7006501200mm
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

Glue applicable
300ml package silicone or 2600ml package silicone

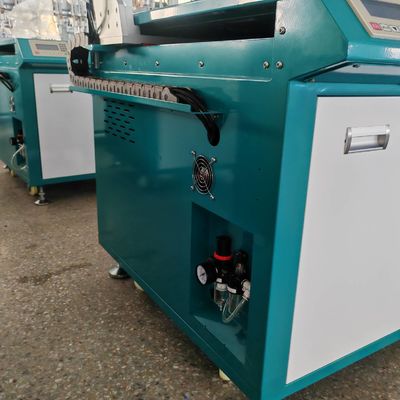

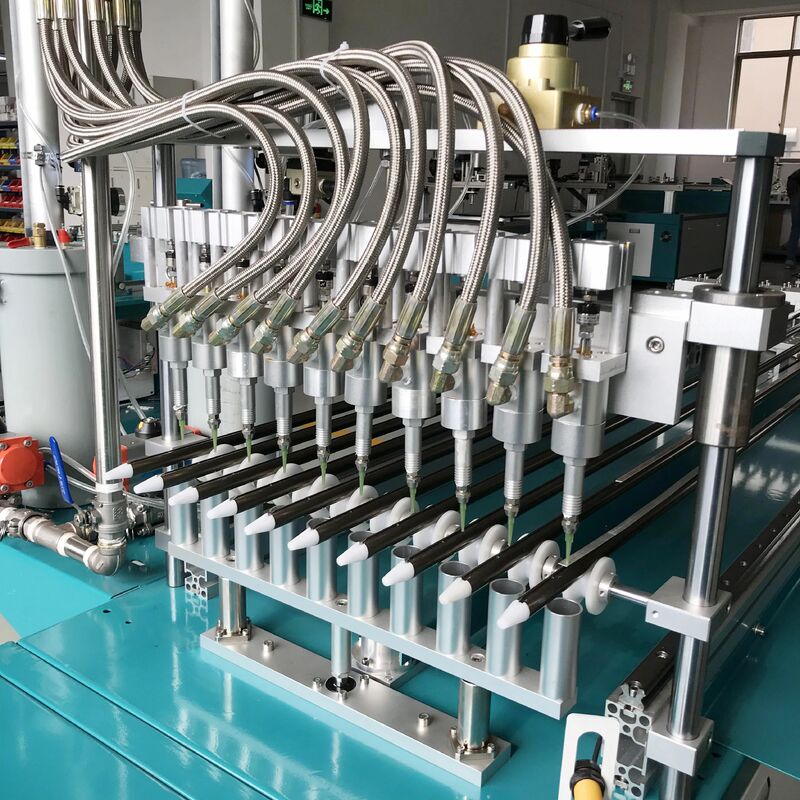

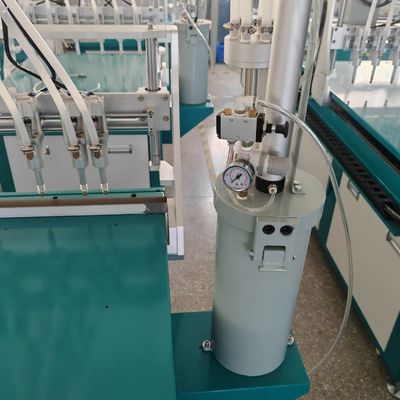

Ma chine Details

3 Axis Dispensing Robot with 600*600mm Working Range ±0.02mm Repeat Accuracy and 500mm/sec Max Speed for LED Lighting 1

3 Axis Dispensing Robot with 600*600mm Working Range ±0.02mm Repeat Accuracy and 500mm/sec Max Speed for LED Lighting 2
